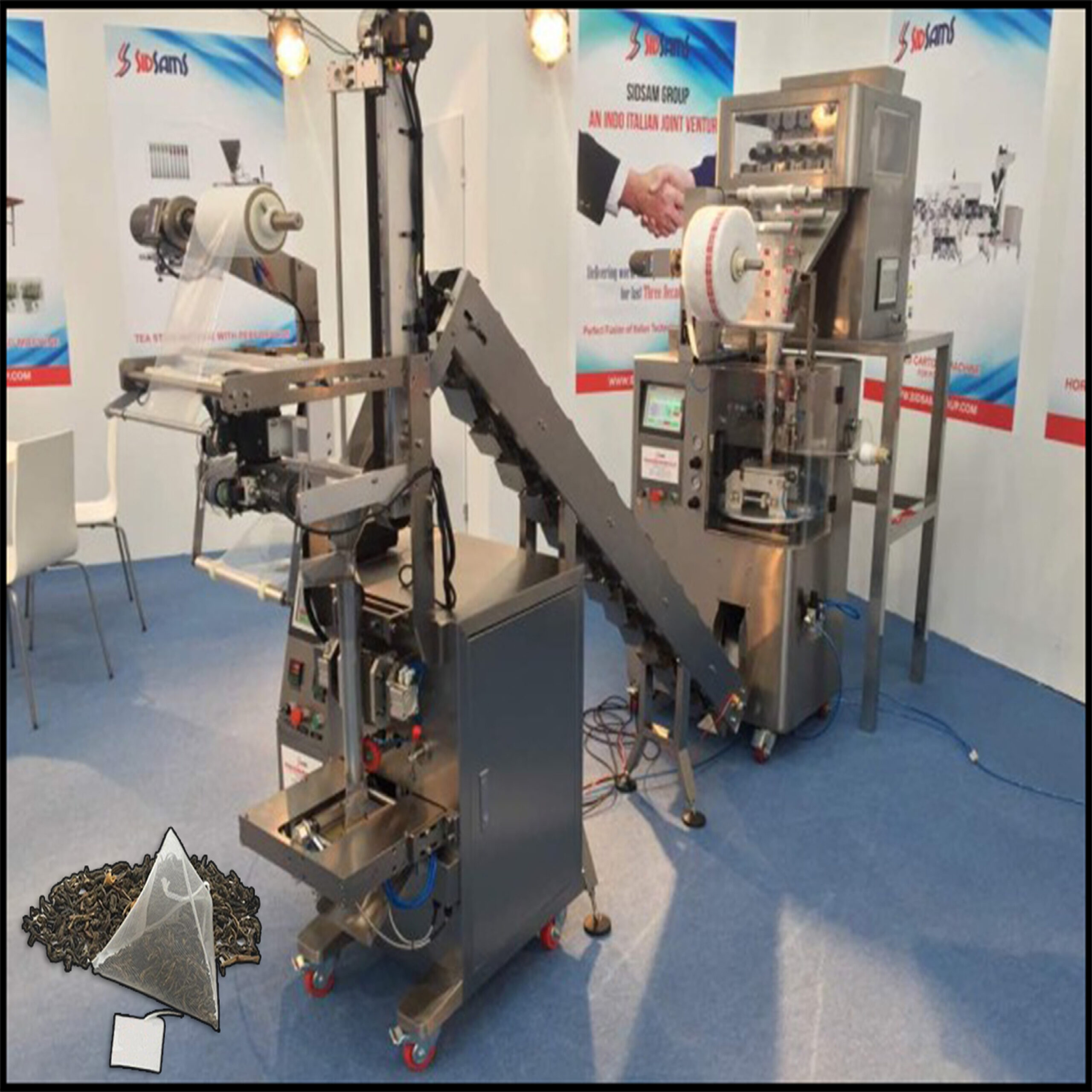

Pyramid Tea Bag Machine (High Speed) With Outer Envelope Machine

Pyramid/rectangular flat Tea bag packing machine with string  & tag in Nylon Cloth with  4 /6 head weigh filler
Sealing Type : Triangular / Pyramid/ rectangular  (Shape can be changed with a press of a button)
Features : The inner bag with thread and tag automatically
PID :  Omron Japan
HMI : Winview
PLC : Mitsubishi  Japan
Filling Range : 2g to 5g Tea
Capacity : 40-45 (bag/min)
Size of Flat Bag :  As per requirement of customer
Length of Pyramid bag : As per requirement of customer
Thread length : Approx. 26cm
Width of roll : Max. 180mm
Power supply : 220V / 50Hz, 1.2KW
Total Power :  3.0 KW
Air Pressure : 6 kg/Sq Cm (200 L/Min)
Rolled paper core  : Dia 76mm
Rolled paper outer  : Max. 400mm
Seal cutting : Impulse sealing
Sealing cutter : 2 sets
Packing material : Food grade non-woven fabrics and nylon filter fabric having pre-fixed thread & tag.
Optional Attachment :-
Transfer Bucket elevator of packed pyramid pouch with Packing machine to Pack pyramid pouch in Outer Sachet
